Akari's MeganeX Modular Facial Interface
I decided to make this separate page for the project because it will be more organized to find all the different modules, versions, and proportions for my modular MeganeX facial interface. Please consider supporting me by choosing SteamVR watchman dongles by Akro!
NOTICE: For most people, please use the V2/V3 interfaces instead of the original. It has more refined supports, mounting mechanisms, and the best curve yet. Additionally, most people find the V2 (HP Reverb curve) too aggressive after adding the face cushion. Please use with caution.
Please make sure you download and print the appropriate modules to go with your facial interface!
Latest Model Download
Custom Curve
V3Quest 3 Curve
V2.1Original Curve
V1Legacy Versions
Changelog
-
Less Weight, Better Compatibility

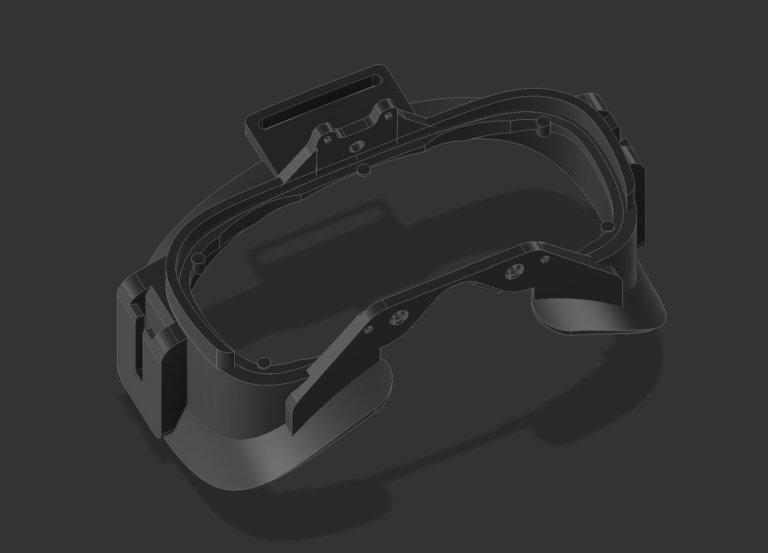

Significant weight reductions and width of interface pieces. Improved compatibility all around with 90 degree adapters and cable extenders. Custom curve modeled from 3D scans of faces.
-
Quest Curve and Comfort Optimizations

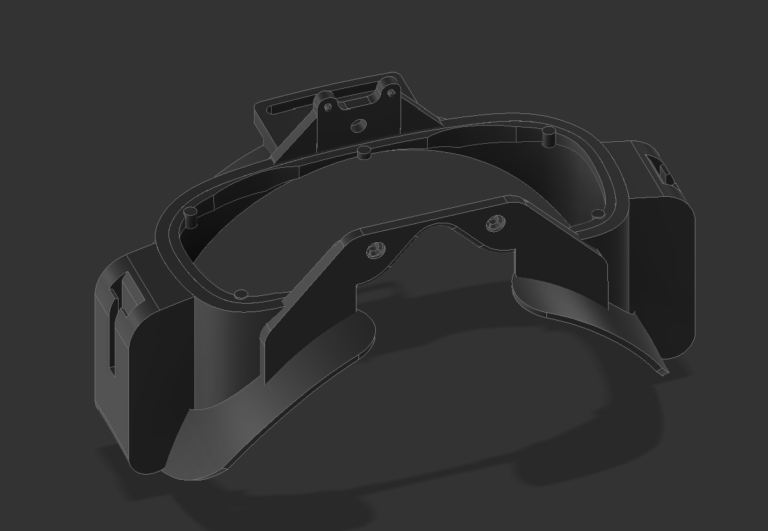

Improved curve to follow the Quest 3 to fit more face shapes.
-
Pressure Point Optimization
Improved top bracket, made the interface piece higher, and reduced weight.
-
First Attempt

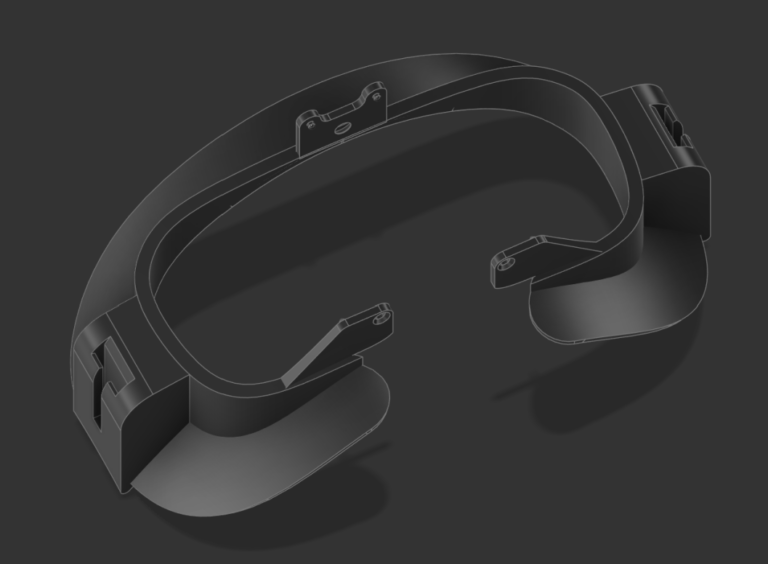

Initial attempt at a face gasket, with a safe, wide curve but many imperfections to iron out.
Modules
The Offset DAS mount (for relieving lower face pressure) is only necessary for the V1. The V2 design has much higher mounts which means you no longer need the offsets. Apple adapter and beyond adapters coming soon!
Gallery
Additional Information
Building your own modules?
The modules are held by a T shaped railing. It’s dimensions are shown below. It is recommended to reduce 0.1mm from every side of the model to allow easier insertion into the mount. You may also add chamfers to make the connection easier.
